Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Slide 12
Slide 13
Slide 14
Slide 15
Slide 16
Slide 17
Slide 18
Slide 19
Slide 20
Slide 21
Slide 22
Slide 23
Product List

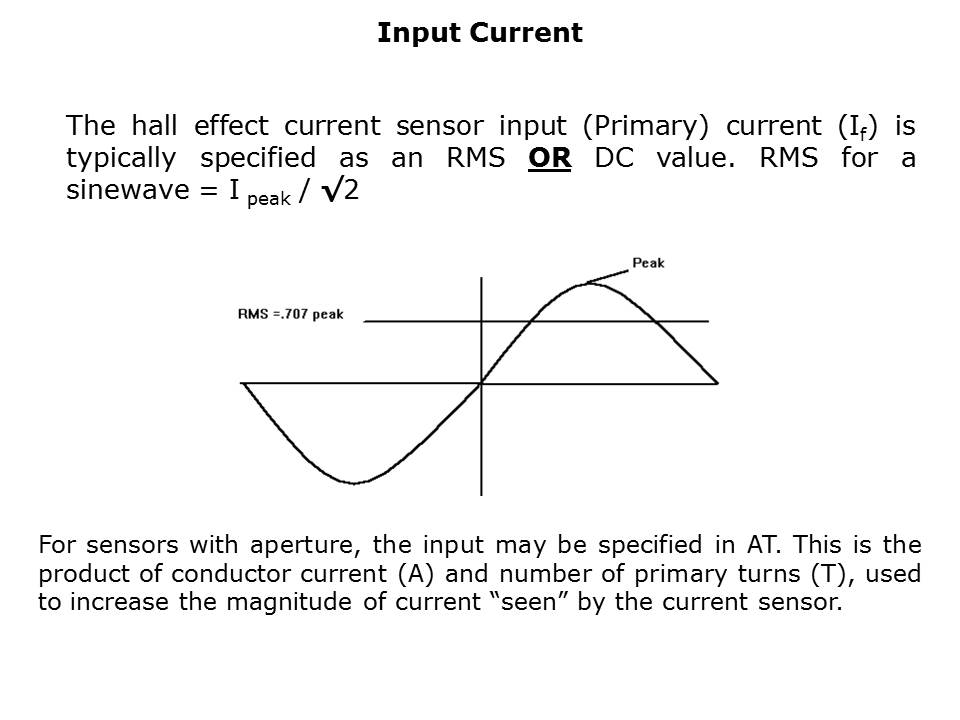

Open loop hall effect current sensor specifications define the input current as the rated, primary, or, nominal current rating of the current sensor as a DC or RMS current. The output voltage of the open loop current sensor is an instantaneous output voltage representation of the primary current whether DC or AC. Therefore, the output voltage tracks the input current exactly; there is no RMS conversion made by the current sensor.
PTM Published on: 2011-11-03
