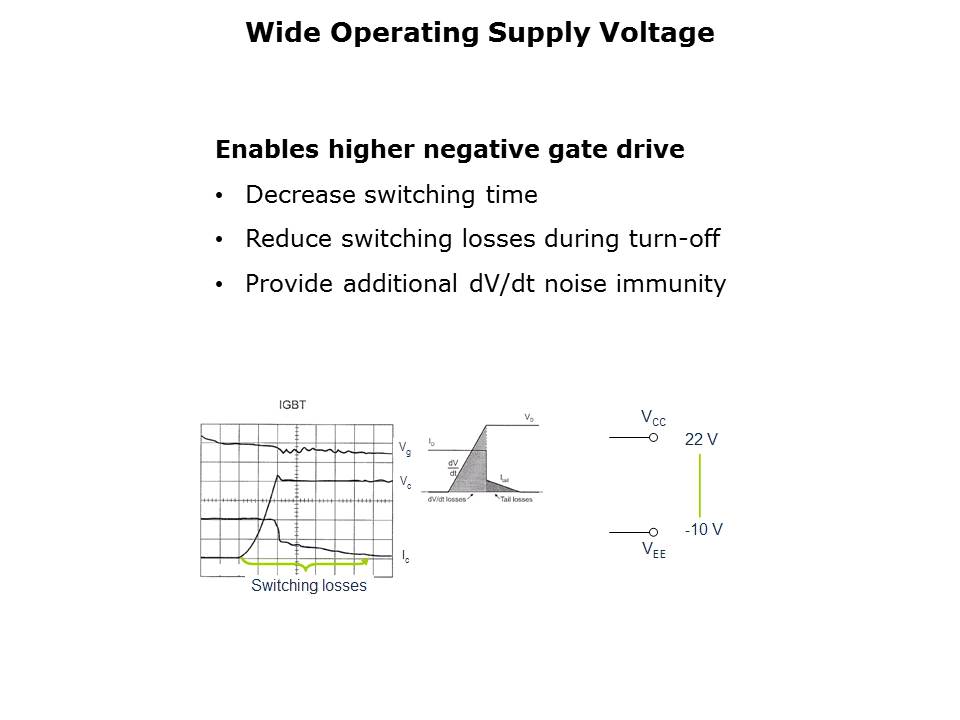

Some larger IGBT’s require negative gate voltage in order to turn them off. In this example, an IGBT with a VCC of 22V could have a healthy 10V negative gate voltage in order to turn it off. Using Vishay’s IGBT/MOSFET drivers decreases switching time, reduces losses during turn off, and provides additional dV/dt noise immunity.
