Slide 1
Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
Slide 7
Slide 8
Slide 9
Slide 10
Slide 11
Slide 12
Slide 13
Slide 14
Slide 15
Slide 16
Slide 17
Slide 18
Slide 19
Slide 20
Slide 21
Slide 22
Product List

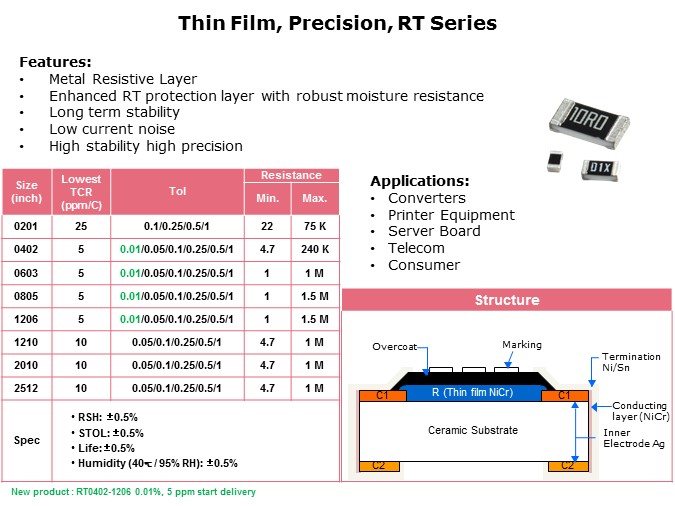

The RT series high precision thin film chip resistors cover sizes from 0201 to 2512, with ±0.01%, ±0.05%, ±0.1%, ±0.25%, ±0.5% and ±1% tolerances. The resistance range is from 1 Ω to 1.5 MΩ at an operating temperature range of -55°C to 155°C. The RT series features excellent TCR performance, where the TCR is lower, down to ±5ppm/°C. The RT series is suitable for use in high precision applications, such as telecom, and measurement instrument.
PTM Published on: 2011-11-18
PTM Updated on: 2018-08-27
