1700 V Silicon Carbide (SiC) MOSFETs and Diodes
Wolfspeed’s 1700 V platform is optimized for high-frequency power electronics including renewable energy inverters and battery charging systems

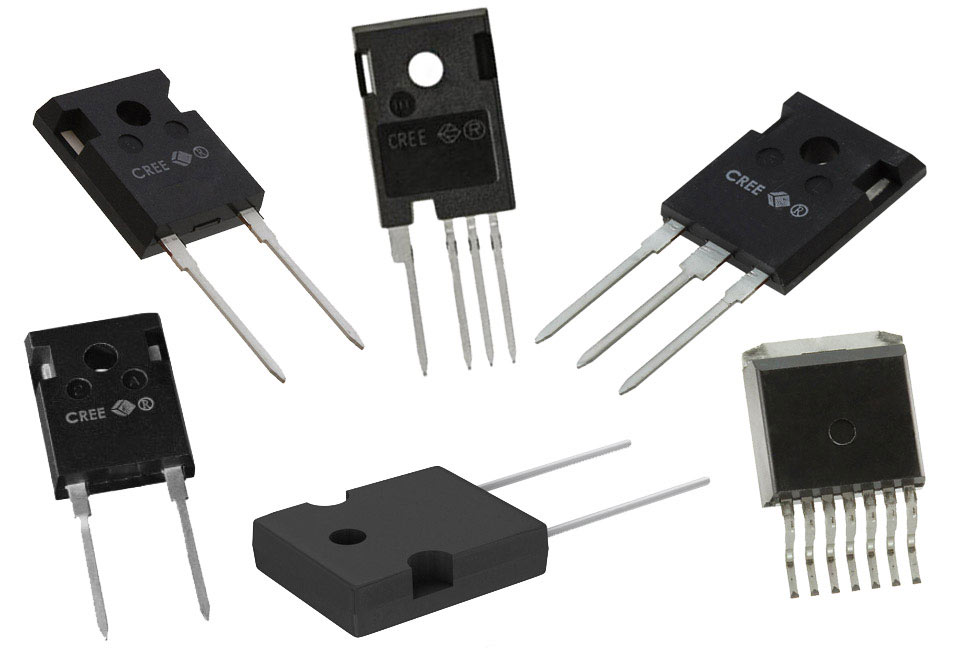

Wolfspeed offers a series of 1700 V SiC MOSFETs and Schottky diodes that enable smaller and more efficient power conversion systems. The 1700 V platform is optimized for high-frequency power electronics, including renewable energy inverters, battery charging systems, and industrial power supply applications. Compared to silicon-based solutions, Wolfspeed silicon carbide technology enables increased system power density, higher switching frequencies, smaller designs, cooler components, reduced size of components like inductors, capacitors, filters, and transformers, and overall cost benefits.
Features
- 1700 V SiC MOSFETs
- High blocking voltage with low RDS(on)
- High speed switching with low capacitances
- Fast intrinsic diode with low reverse recovery (QRR)
- Easy to parallel and simple to drive
- Resistant to latch-up
- Halogen-free, RoHS compliant
- Low parasitic inductance
- Higher system efficiency
- Reduced cooling requirements
- Increased power density
- Increased system switching frequency
- Surface mount package with separate kelvin source pin lowers source inductance and provides up to 30% lower switching losses
- Optimized packing with wide creepage and clearance distance between drain and source (8 mm) providing extra electrical isolation suitable for high pollution environments
- 1700 V Schottky Diodes
- Zero reverse recovery current
- Zero forward recovery voltage
- High-frequency operation
- Temperature-independent switching behavior
- Extremely fast switching
- Positive temperature coefficient on VF
- Halogen-free; RoHS compliant
- Replace bipolar with unipolar rectifiers
- Essentially no switching losses
- Higher efficiency
- Reduction of heat-sink requirements
- Parallel devices without thermal runaway
Applications
- Auxiliary power supplies
- Switch mode power supplies
- Power inverters
- 1500 V solar inverters
- High voltage DC/DC converters
- Motor drives
- Pulsed power applications
1700 V Silicon Carbide (SiC) MOSFETs
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | C2M1000170D | SICFET N-CH 1700V 4.9A TO247-3 | 0 - Immediate | View Details for Pricing | View Details |
 | C2M0080170P | SICFET N-CH 1700V 40A TO247-4 | 0 - Immediate | $32.56 | View Details | |
|  | C2M0045170P | SICFET N-CH 1700V 72A TO247-4 | 0 - Immediate | $107.38 | View Details |
| | C2M0045170D | SICFET N-CH 1700V 72A TO247-3 | 0 - Immediate | View Details for Pricing | View Details |
|  | C2M1000170J | SICFET N-CH 1700V 5.3A D2PAK | 0 - Immediate | $13.59 | View Details |
|  | C2M1000170J-TR | SICFET N-CH 1700V 5.3A D2PAK-7 | 0 - Immediate | $11.04 | View Details |
1700 V Schottky Diodes
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 | C5D05170H | DIODE SIL CARB 1700V 18A TO2472 | 0 - Immediate | View Details for Pricing | View Details | |
| C5D10170H | DIODE SIL CARB 1700V 33A TO2472 | 0 - Immediate | View Details for Pricing | View Details | |
 | C3D10170H | DIODE SIL CARB 1.7KV 14.4A TO247 | 0 - Immediate | $13.51 | View Details | |
| C3D25170H | DIODE SIL CARB 1.7KV 26.3A TO247 | 0 - Immediate | $41.36 | View Details | |
| C5D25170H | DIODE SIL CARB 1700V 70A TO2472 | 0 - Immediate | View Details for Pricing | View Details |
Associated Parts
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | CAS300M17BM2 | MOSFET 2N-CH 1700V 325A MODULE | 0 - Immediate | View Details for Pricing | View Details |
 | CRD-060DD17P-2 | EVAL BOARD FOR C2M1000170D | 0 - Immediate | $233.75 | View Details | |
|  | CRD-15DD17P | EVAL BOARD FOR C2M1000170J | 0 - Immediate | View Details for Pricing | View Details |
Published: 2020-05-20
