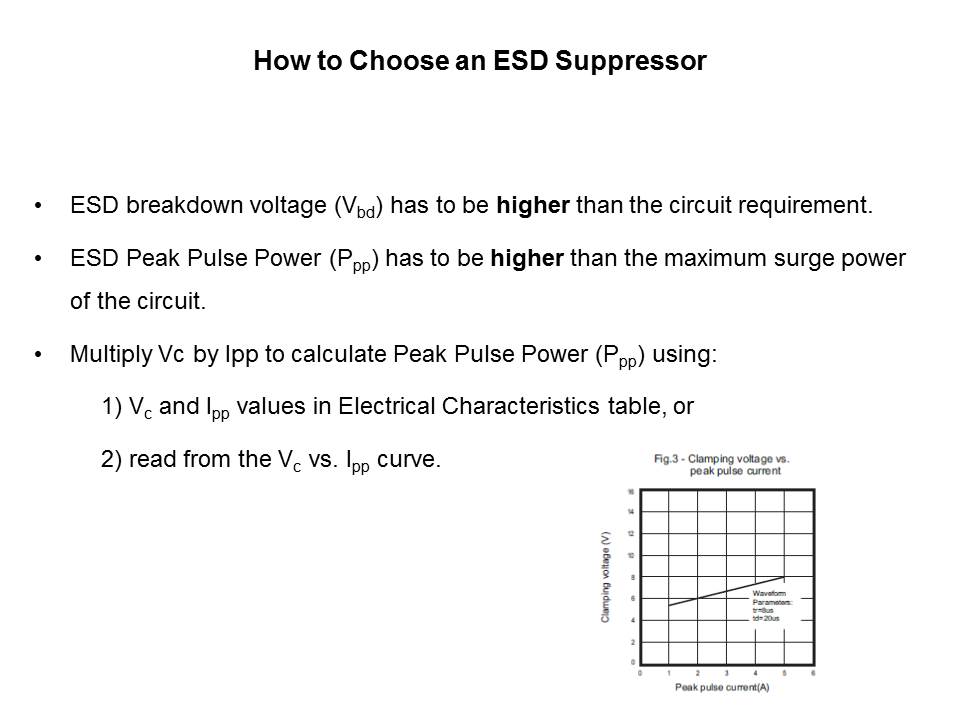

Requirements and tips in choosing an ESD suppressor: ESD breakdown voltage has to be higher than the circuit requirement. ESD Peak Pulse Power has to be higher than the maximum surge power of the circuit. Multiply Vc by Ipp to calculate Peak Pulse Power using: Vc and Ipp values in Electrical Characteristics table, or read from the Vc vs. Ipp curve.
