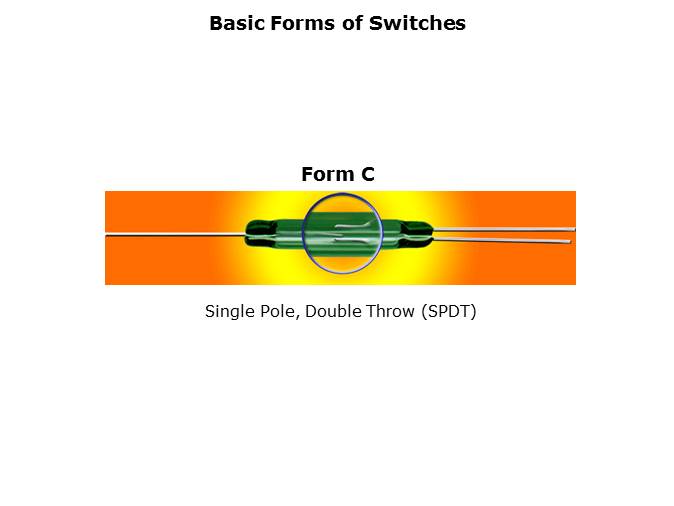

The last type of switch is the Form C switch which has both a normally open and normally closed contact along with a common contact. In the illustration, note the structure of the switch with one input wire and two output wires. This switch is sometimes called Single Pole Double Throw (SPDR) or a changeover switch.
