Product List

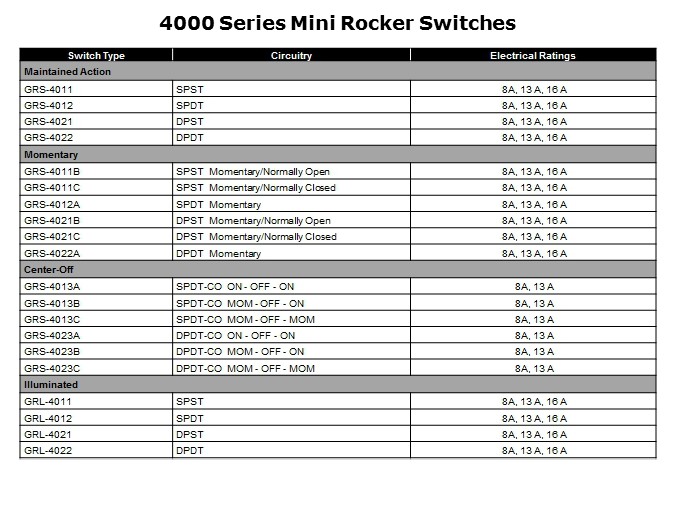

The CW 4000 Series product offering is presented in the chart shown on this slide. To identify the right series for an application, the user must determine the following: the switch function, maintained, momentary or center off; the electrical rating required, 8A, 13A or 16A; and the circuitry for the application, SPST, SPDT, DPST, or DPDT. As an example, a GRS 4011-13 is a maintained action, single pole, single throw miniature rocker rated at up to 13A.
