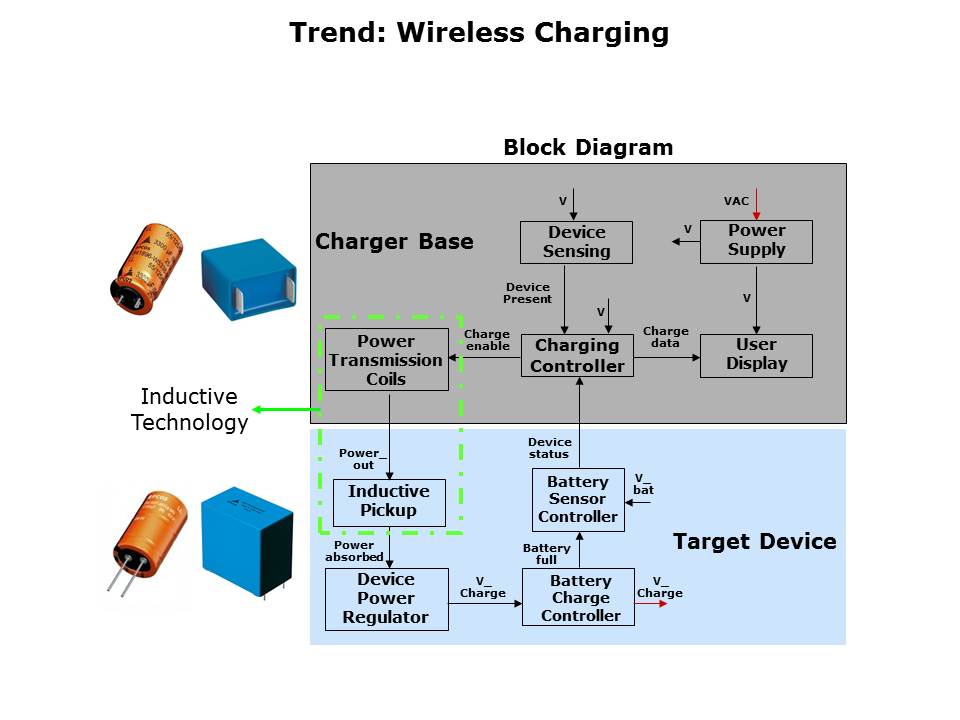

A simple block diagram for wireless charging is shown on this slide. In the top box, the charger base, the power transmission coils are shown and in the target device, the inductive pick-up portion of the inductive charger is shown. Between these positions electrolytic and film capacitors are commonly used.
