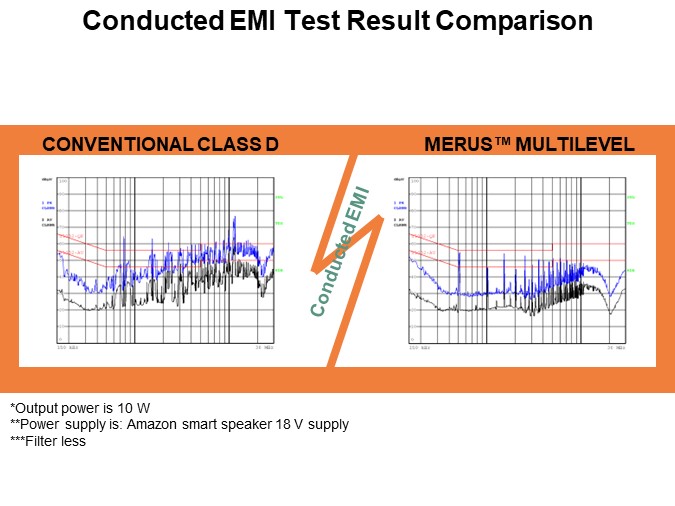

Shown here is the conducted EMI test result of a multi-level class D amplifier which is much better than that of a conventional class D amplifier. The test conditions of both amplifiers are exactly the same: running at 10 W output power level with 18 V PVDD power supply and the same ferrite beads output filter circuit.
