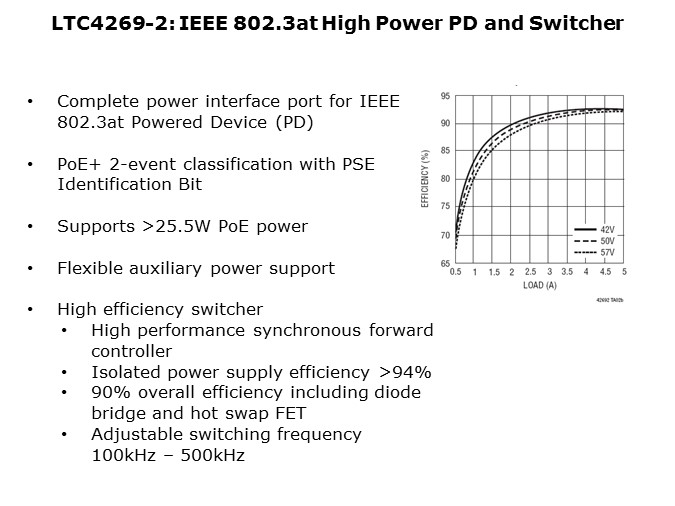

The LTC4269-2 integrates the LTC4265 PD controller with a synchronous forward controller which offers slightly better efficiency over the LTC4269-1 at higher load currents. The adjustable DC/DC controller achieves greater than 94% efficiency, and greater than 90% when keeping into account the other external components. All other features are similar to LTC4269-1.
