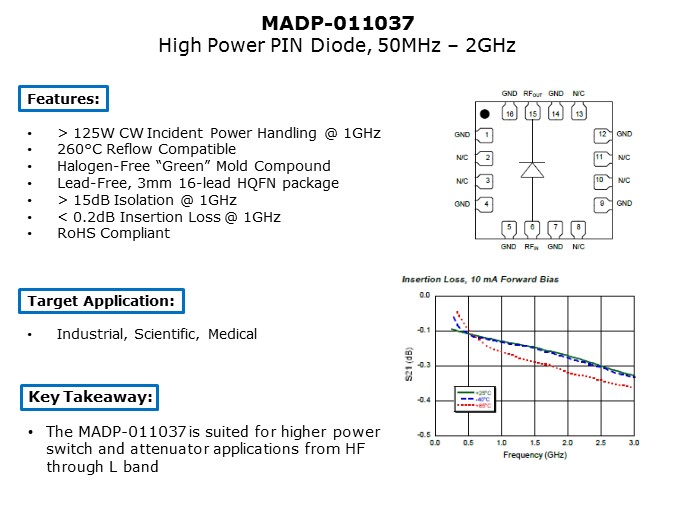

The MADP-011037 is a high power PIN diode assembled in a lead-free 3mm 16-lead HQFN plastic package. This device provides exceptional switch and attenuator performance, with a frequency range of 50MHz to 2GHz. The MADP-011037 has a total capacitance of 0.3pF, resistance of 0.6 Ohms, and a lifetime of 1,000nS. The performance graph in the lower right corner shows the device’s insertion loss Vs. frequency. The MADP-011037 is targeted for industrial, scientific, and medical applications.
