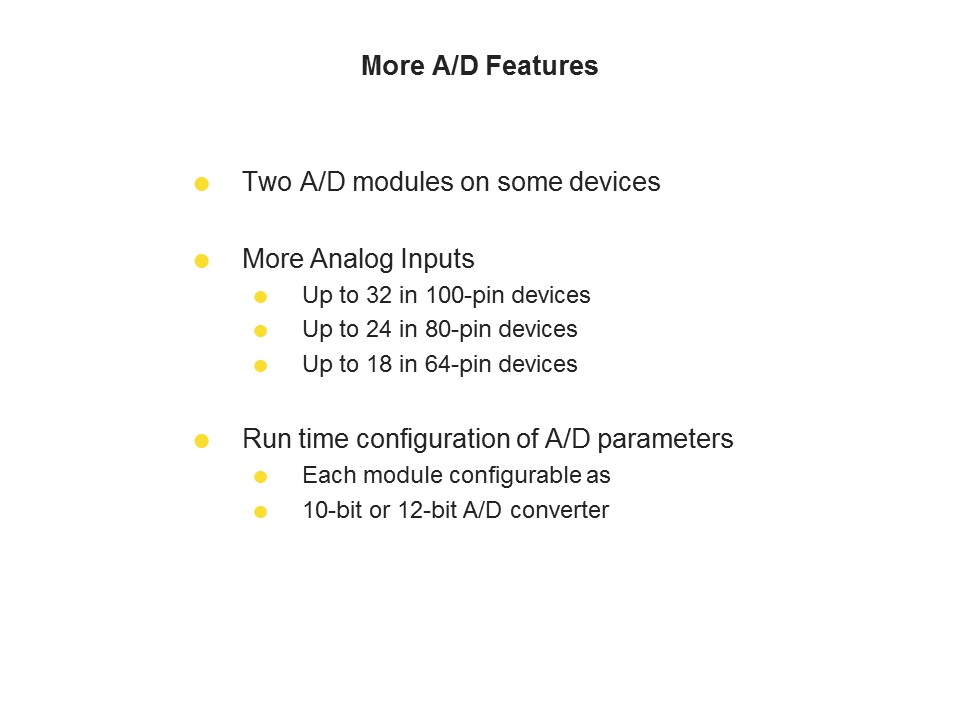

Many dsPIC33 devices contain 2 AD modules, the rest contain 1 AD module. The AD modules support many more analog inputs, up to 32 inputs on 100-pin devices. The most interesting new feature of the AD module is the ability to select the configuration of the analog module. The AD module can reconfigure as either a 10-bit AD or a 12-bit AD.
