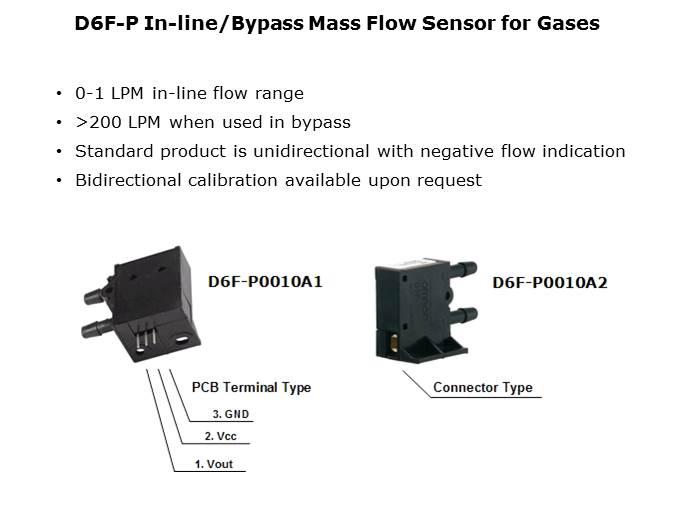

The first of the three types of MEMS mass flow sensors discussed will be the D6F-P in-line/bypass sensor. This product has 0-1 LPM in-line flow range rating and a greater than 200 LPM bypass flow measurement range rating. The standard device is unidirectional with negative flow indication capability. This product is available with bidirectional calibration upon request.
