Product List
Associated Content

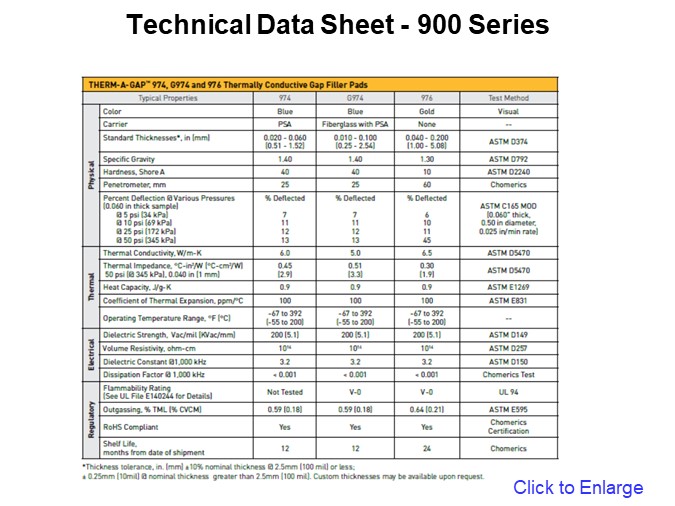

Data Sheets for the second group of materials, the 900 Series Gap Pad are shown here. These Therm-A-Gap™ products can be almost twice or more times the thermal conductivity (k) of the previous series Gap Pads. However, the 900 series are not as soft and complaint, and have a smaller pad compression range.
PTM Published on: 2020-01-24
