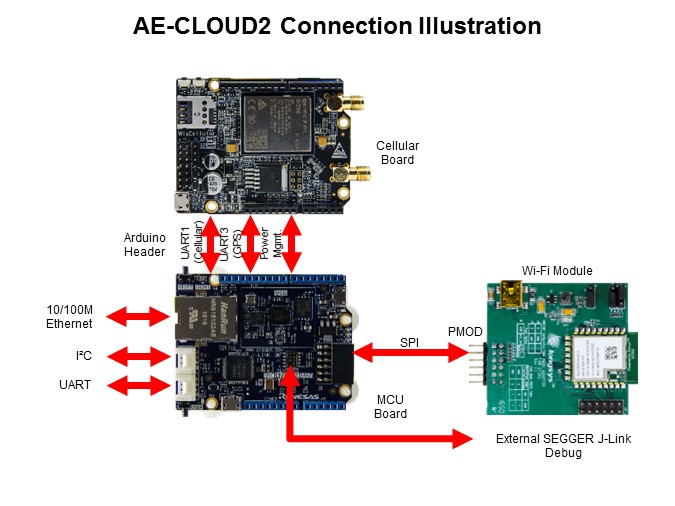

This illustration provides further details on connections between the cellular board and Wi-Fi module. The Wi-Fi module communicates with the S5D9 MCU board through the SPI using the PMOD connector. The cellular board interfaces with the S5D9 MCU board via the Arduino headers using one UART for cellular data and another UART for GPS data. The power management for the cellular board is also handled through the Arduino header.
