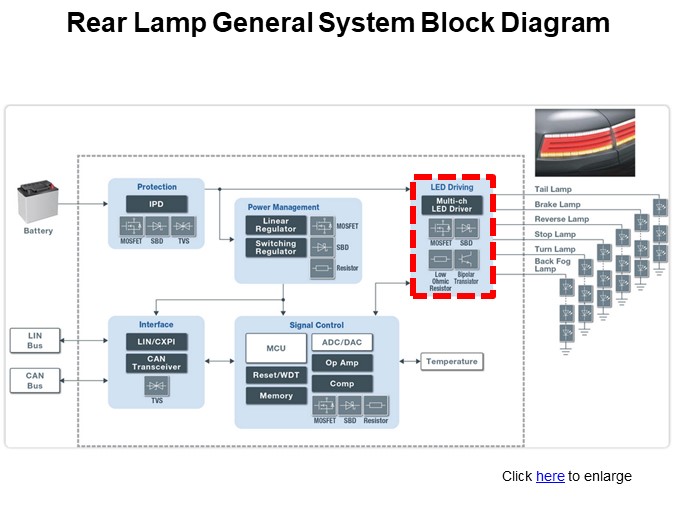

This block diagram shows a simplified system of the tail lamp unit. Power from the battery utilizes the multi-channel output LED driver feature to drive different functions required for the rear lamp unit. This slide shows how the function for the tail/brake/reverse/stop/turn lights and fog lamp are independently controlled by the LED driver. A multi-channel output is a key feature in this kind of combination of lamp system in an automotive exterior lighting application.
