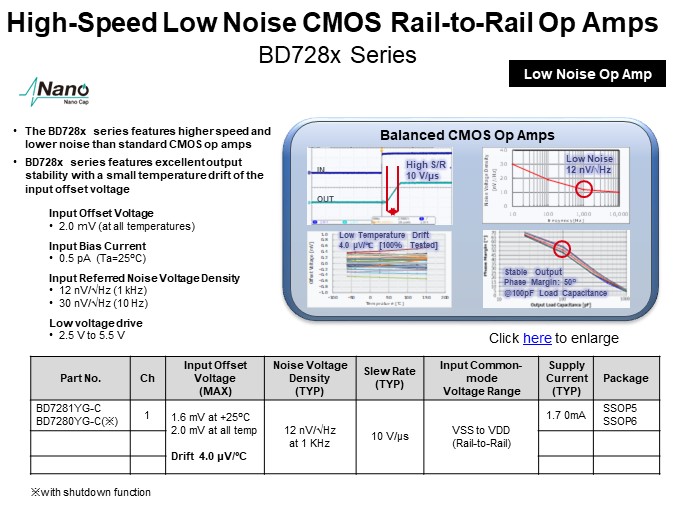

Next is the BD728x series, which combines a high-speed SR of 10 V/µs with low offset voltage temperature drift. These products leverage ROHM's NanoCap technology to ensure a phase margin of 50º at an output capacitance of 100 pF, with no oscillation even at 1,000 pF. This good balance of characteristics makes them ideal replacements in applications where the output of the amplifier has oscillation problems.
