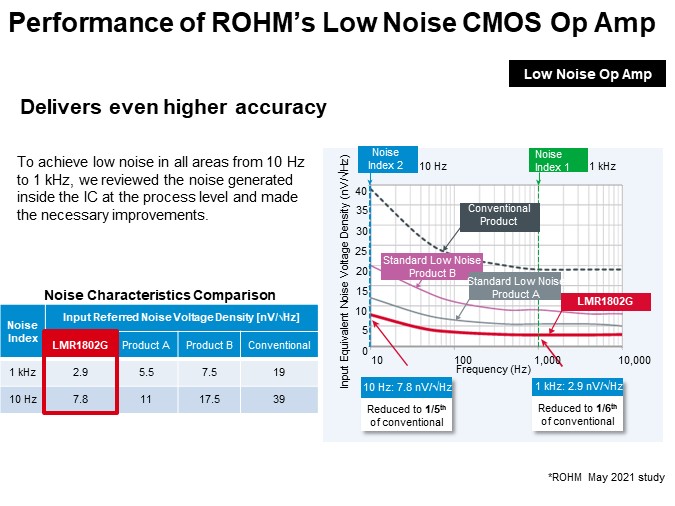

This graph compares the noise performance of ROHM’s low-noise op amps and general products. The horizontal axis represents frequency, and the vertical axis represents the noise magnitude. ROHM’s LMR1802G provides low noise characteristics over the entire frequency range. Noise at 1 kHz is 1/6th of conventional products, while noise at 10 Hz is reduced to 1/5th. These characteristics were achieved by reviewing the noise generated inside the IC at the process level.
PTM Published on: 2023-12-14
