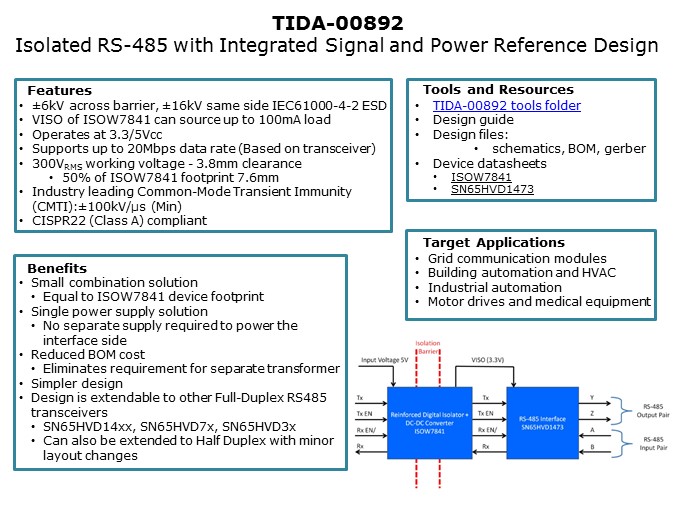

Shown on this slide is the TIDesign that combines the ISOW7841 with an RS-485 device, SN65HVD1473, to provide a compact isolated RS-485 system with integrated power. This design provides a small combination solution with reduced BOM cost and high performance. The TIDA-00892 TIDesign provides the schematic, evaluation data, and Gerber files to reduce development time.
PTM Published on: 2017-10-20
