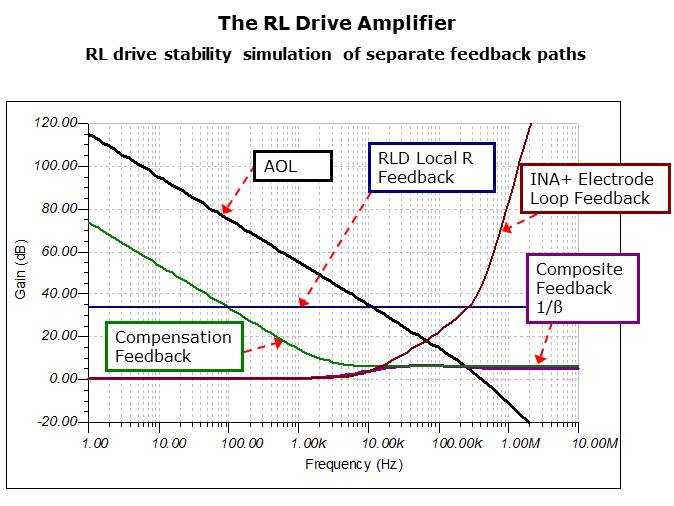

The graph on this slide shows the different aspects of the RL drive amp loop which contribute to the overall stability. These include the open loop gain of the instrumentation amplifier, the right leg drive, feedback resistor, the overall INA electrode loop feedback, and a compensation network that has been introduced to the right leg drive to stabilize the device.
