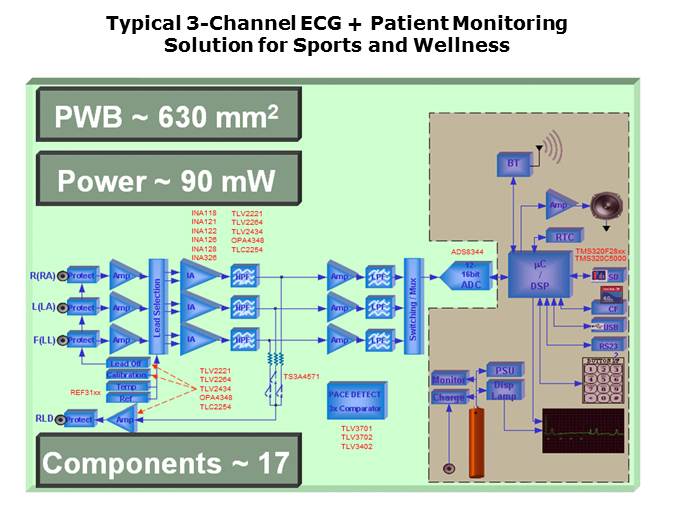

The block diagram shown is a typical three channel ECG patient monitoring solution for sports and wellness monitoring and is what would typically be seen in terms PCB area. As can be seen, this design involves 630 square millimeters of area, requires 90 mW of power, and has a seventeen device component count.
