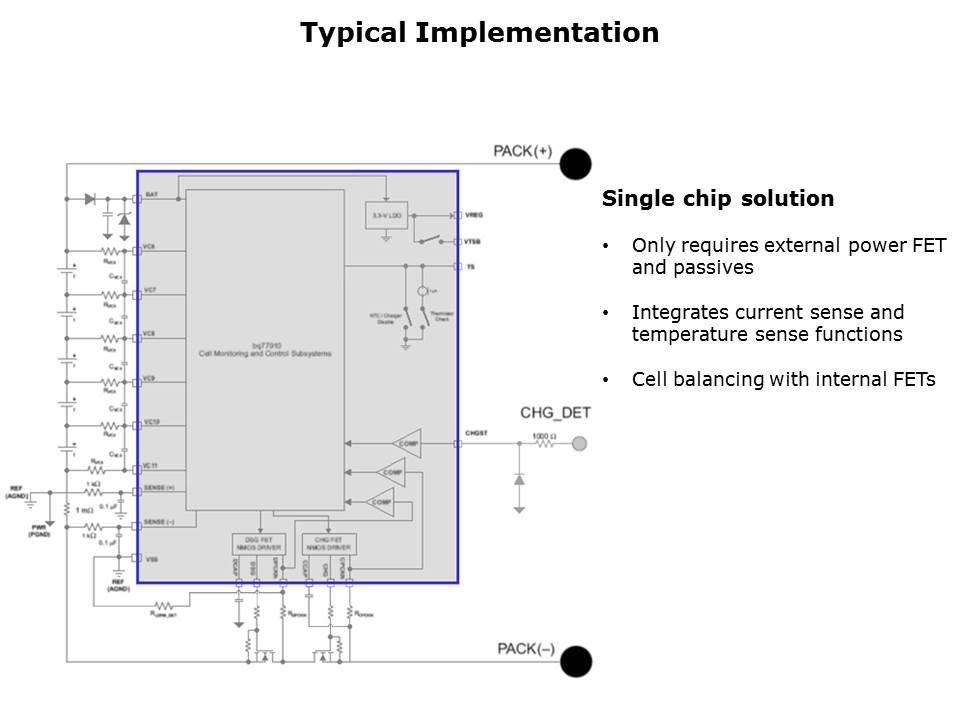

A typical implementation of a 5-cell pack is shown on this slide. No external MOSFETs are required for cell balancing, and the balancing algorithm is fully self-contained in the bq77910 itself. The only significant external components required are the power FETs used, which can be scaled to the needs of the application.
