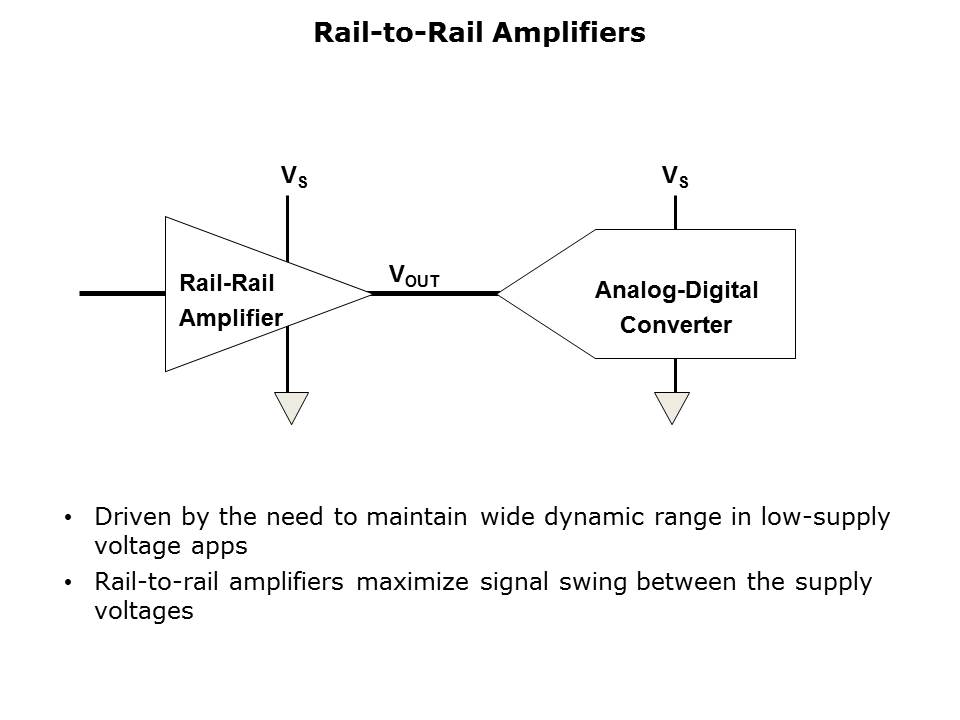

There are some good reasons to use a rail-to-rail amplifier. In a single supply application, every bit of supply voltage is needed. Many A/D converters operate from a +3 or +5V supply. Also, if a rail-to-rail amplifier is using the same supply voltage as the ADC, the amplifier can not damage the ADC by generating a voltages larger than the rail.
