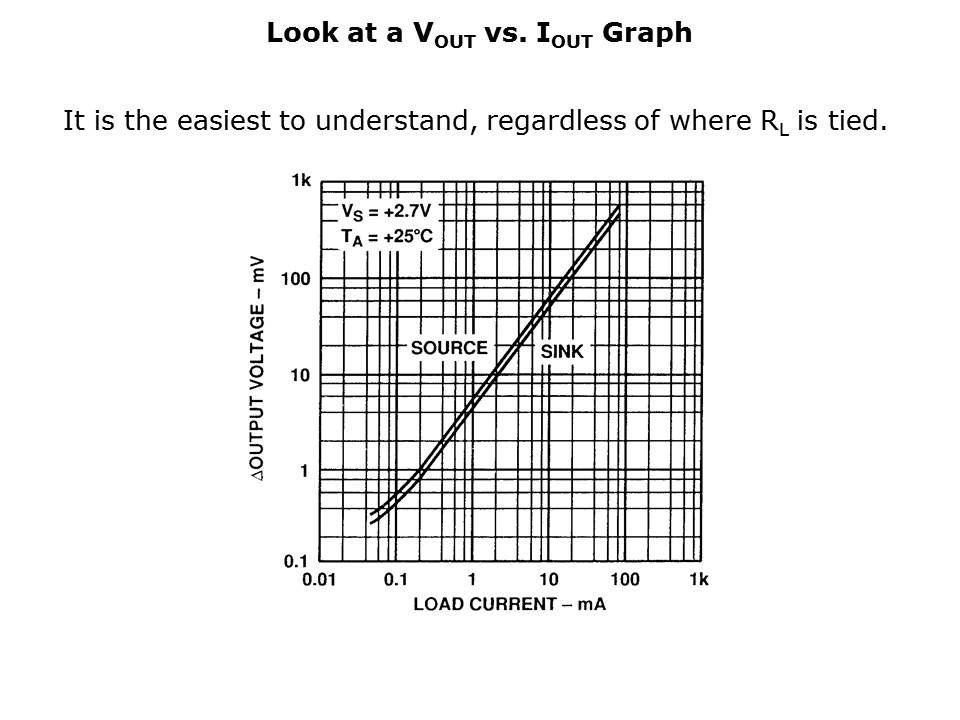

Many op amp datasheets have a Load Current vs. Voltage Curve similar to the one shown in the slide. This chart shows that when the load current increases, the output voltage gets further from the rails. For example, when the op amp sources or sinks 2mA, the output voltage can get within 10mV of either power supply rail.
