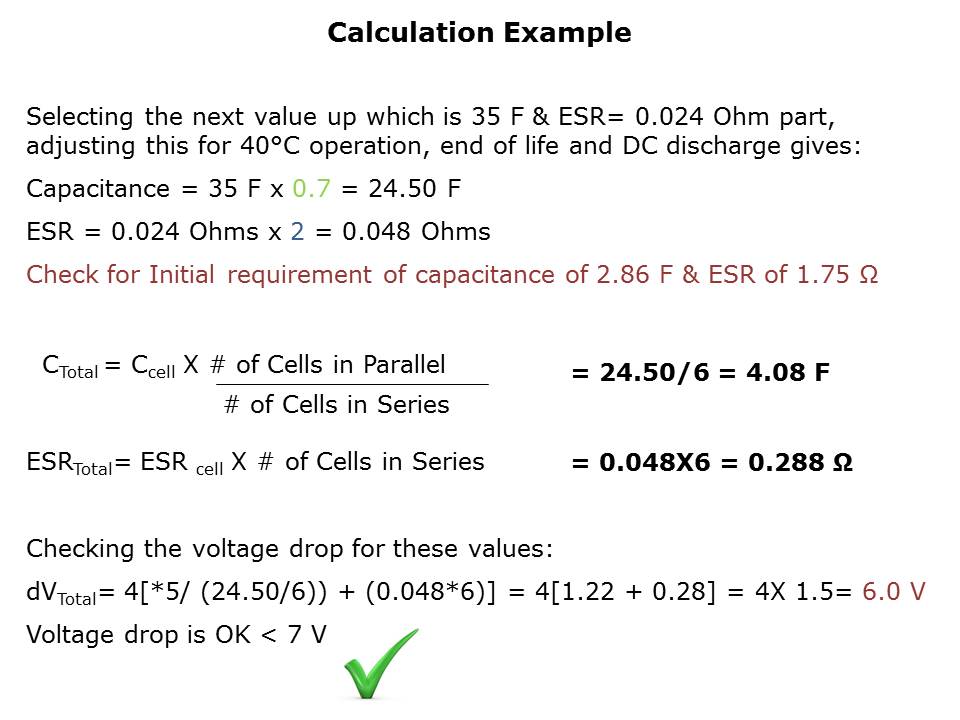

So now the designer will look at the next value up in capacitance which is 35 F and an ESR of 0.024 Ohms. Taking into account the environmental parameters one will have a capacitance of 24.5 F and an ESR of 0.48 Ohms. Then verify the new parameters to the initial requirements of 2.56 F and 1.75 ohms ESR buy using equations 4 and 5. Then calculate dVTotal with the new values, dVTotal is 6.0 V and this is less than the 7 V originally calculated deeming this as a valid solution.
