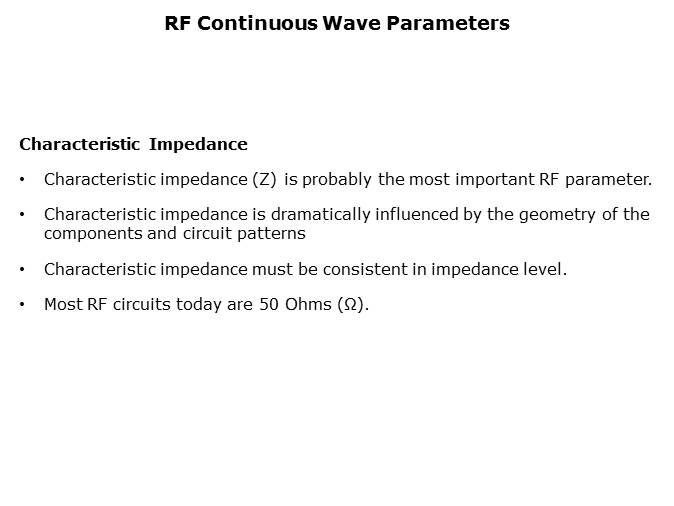

Characteristic impedance (Z) is often times the most important RF parameter. Characteristic impedance is dramatically influenced by the geometry of the components and circuit patterns. Characteristic impedance must be consistent in its impedance level. Most RF circuits today are 50 Ohms (Ω).
