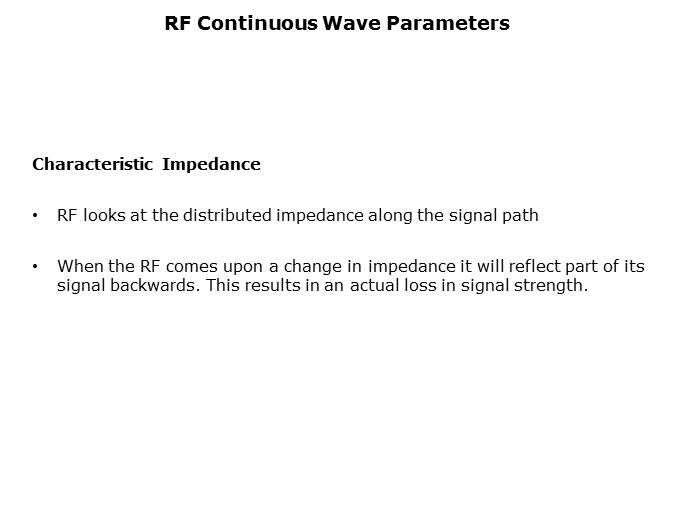

Impedance is calculated at any point along the signal path. Therefore, the RF signals look at the distributed impedance along the signal path. When the RF comes upon a change in impedance, part of the signal will be reflected backwards. This translates into an actual loss in signal strength.
PTM Published on: 2012-07-23
