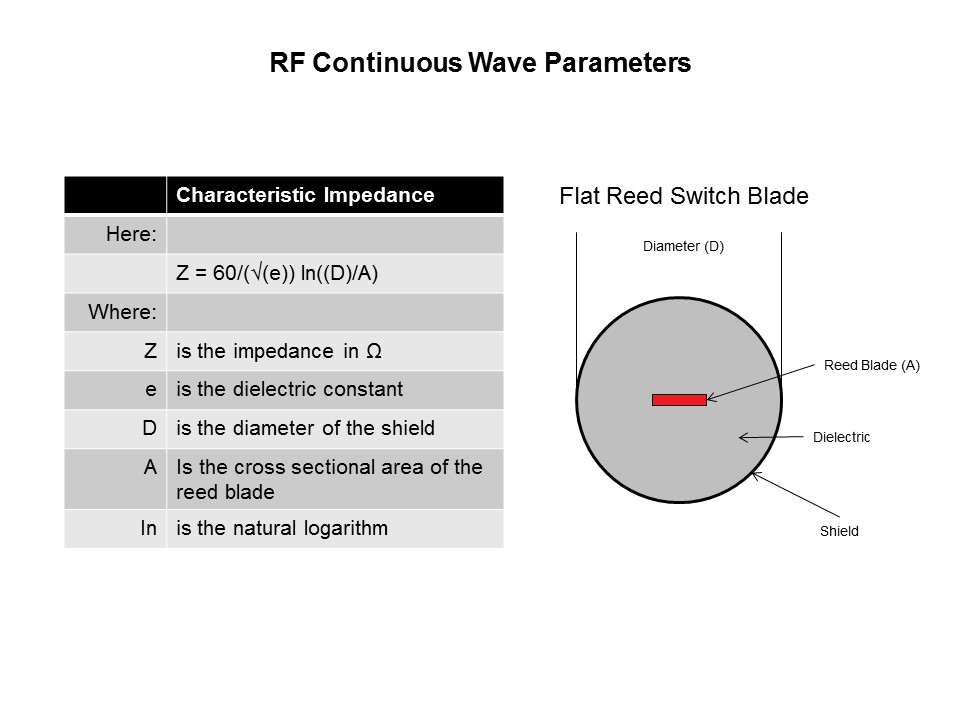

From the geometry shown here, one can see for a flat reed switch blade the impedance equation shows the complete dependence on the geometry of the reed relay. This equation shows how the physical design of a reed relay can clearly control and enhance the RF performance by maintaining a consistent characteristic impedance.
