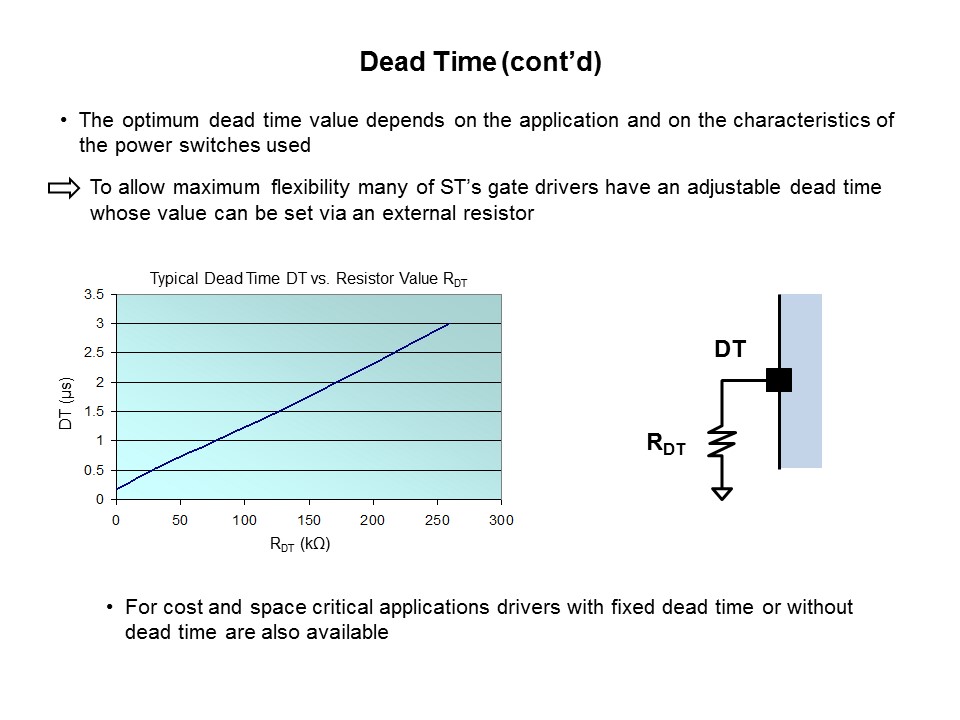

Dead time is programmed very easily with an external resistor on the DT pin. Some products have a fixed dead time and others can be programmed. The curve in the table on this slide shows the typical dead time in µS (0.18 µS if the resistance = 0) vs. the resistance in kΩ.
