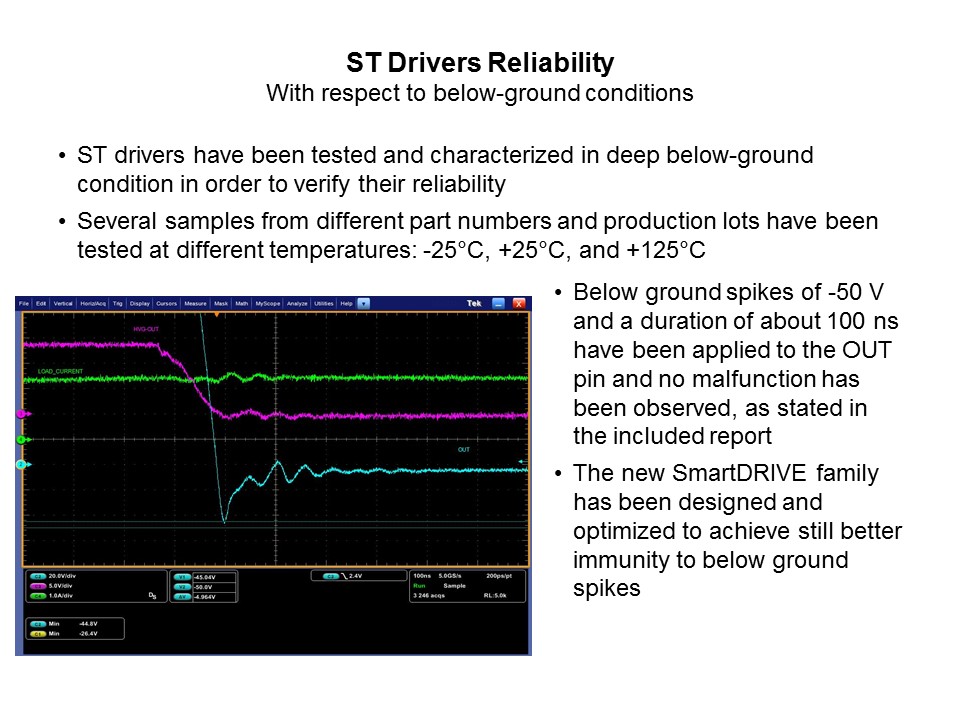

The SmartDRIVE family has been designed and tested to withstand below ground spikes of -50 V for a duration of about 100 nS making it one of the most robust drivers in the market. The scope display on this slide shows the spike before the voltage stabilizes at 0 V (blue curve).
