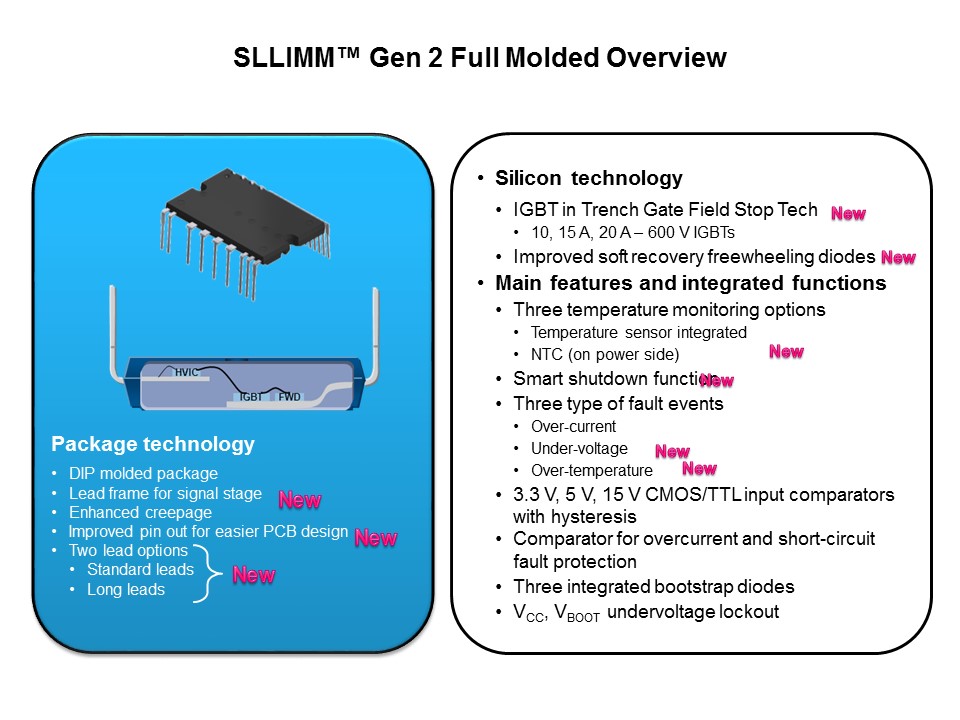

Features of the low cost FM, Full Molded package, devices are presented on this slide. These devices are made of a DIP epoxy molded construction. These devices all use Trench Gate Field Stop IGBT technology and have improved soft recovery freewheeling diodes. As mentioned previously, the NTC temperature sensing option is now located on the power side, near the IGBTs. They also include the smart shutdown feature that was introduced in some of the earlier Gen 1 SLLIMM products.
