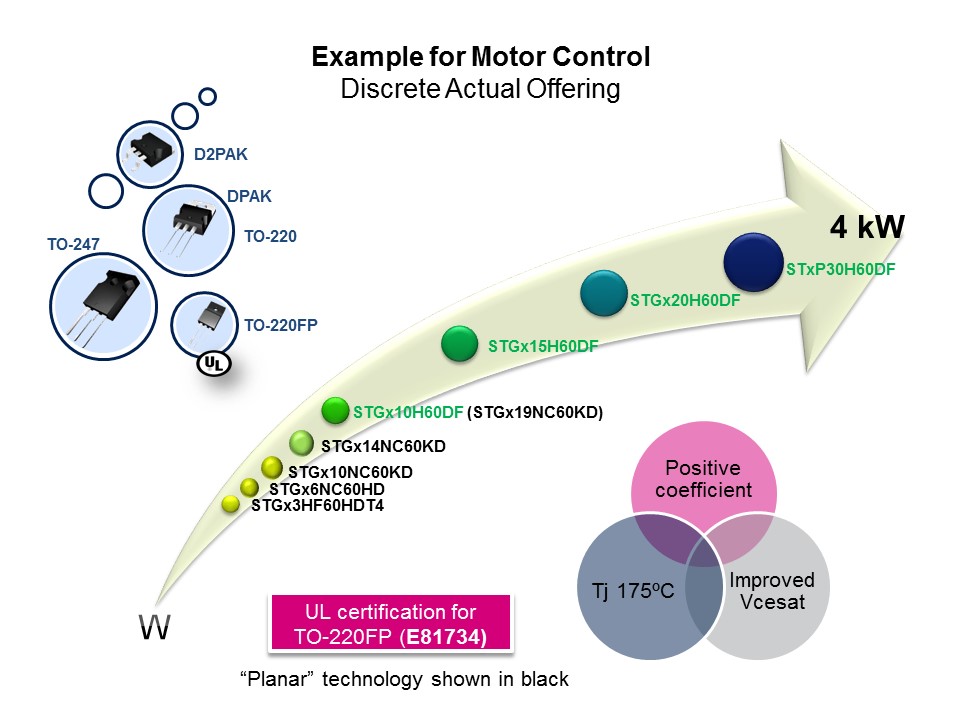

This slide illustrates the progression from existing Punch Through Planar Technology to ST’s current Trench Gate Field Stop Technology IGBT offerings for motor control. The variety of package types, plus the fact that there is UL certification on the TO-220FP insulated package is also shown. New TGFS devices are shown in green lettering. These offer the positive Vce saturation temperature coefficient, improved Vce saturation, and a maximum junction temperature of 175°C, as previously discussed.
