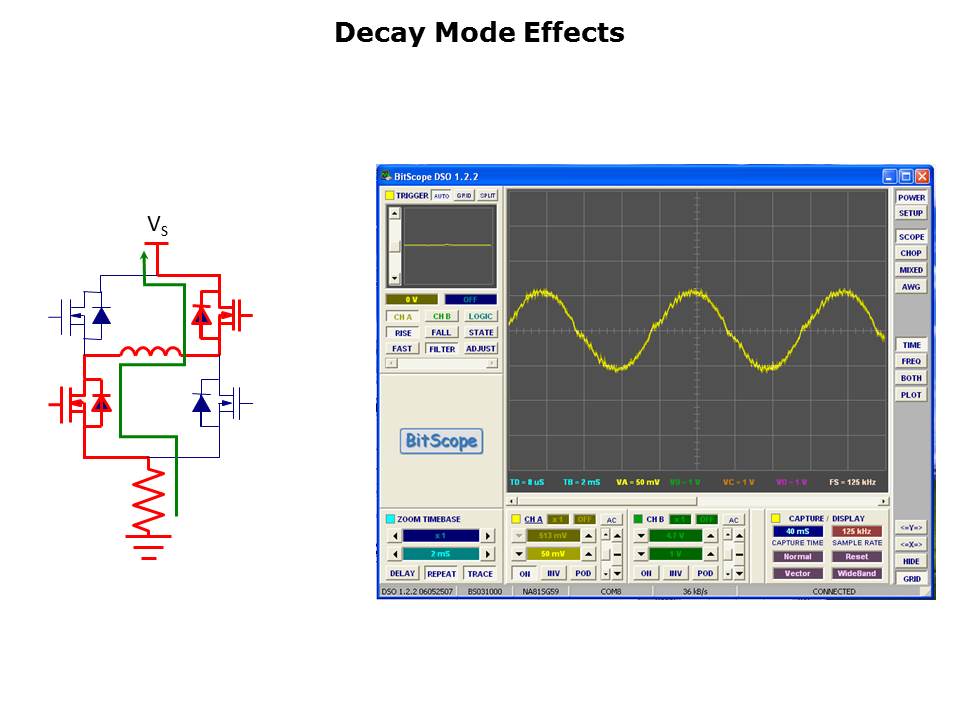

The current waveform looks much better if the device is in fast decay. Since the voltage across the coil is larger, the rate of change will be greater and the desired current waveform can be followed. An increase in ripple current is observed as expected when changing to fast decay. Of course if the sine wave is slow enough, it is possible to follow it even with slow decay.
