Product List

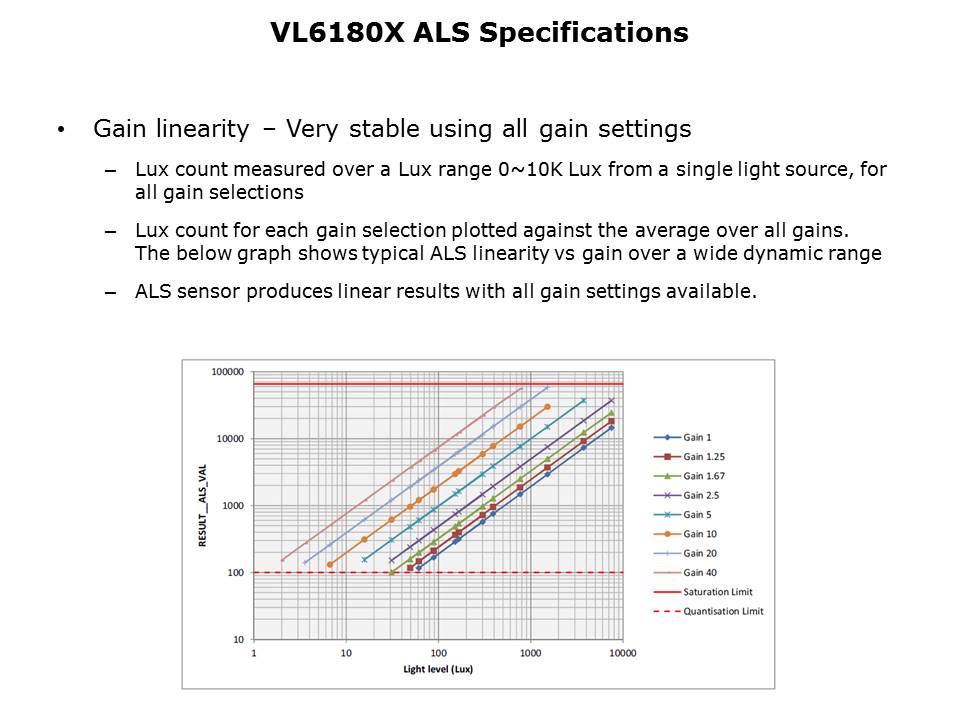

The VL6180X ALS sensor is linear across all the eight different gain settings available. The test data shown below is taken in difference lighting conditions and with different gain settings. This means that the sensor is very easy to use with any complex algorithms or look-up tables required in the HOST application software.
PTM Published on: 2015-03-23
