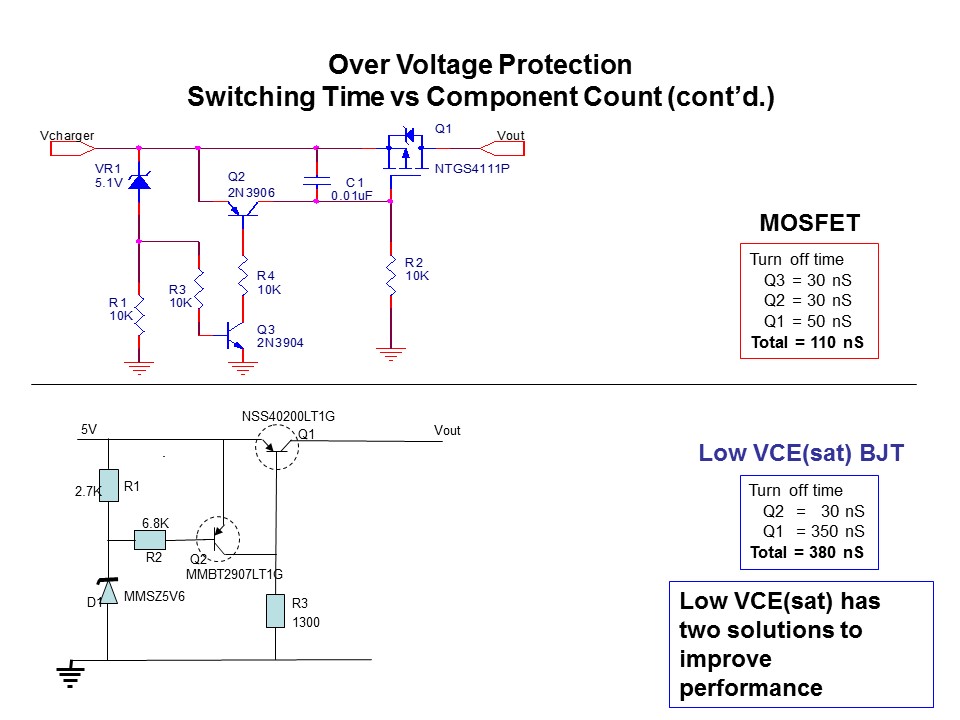

The low VCE(sat) BJT transistor solution has only two active devices operating in series, but will have a switching time of 380nS. This longer time is due to the turn off storage time of the BJT. This, by itself, is a problem. But there are two approaches to providing a solution.
