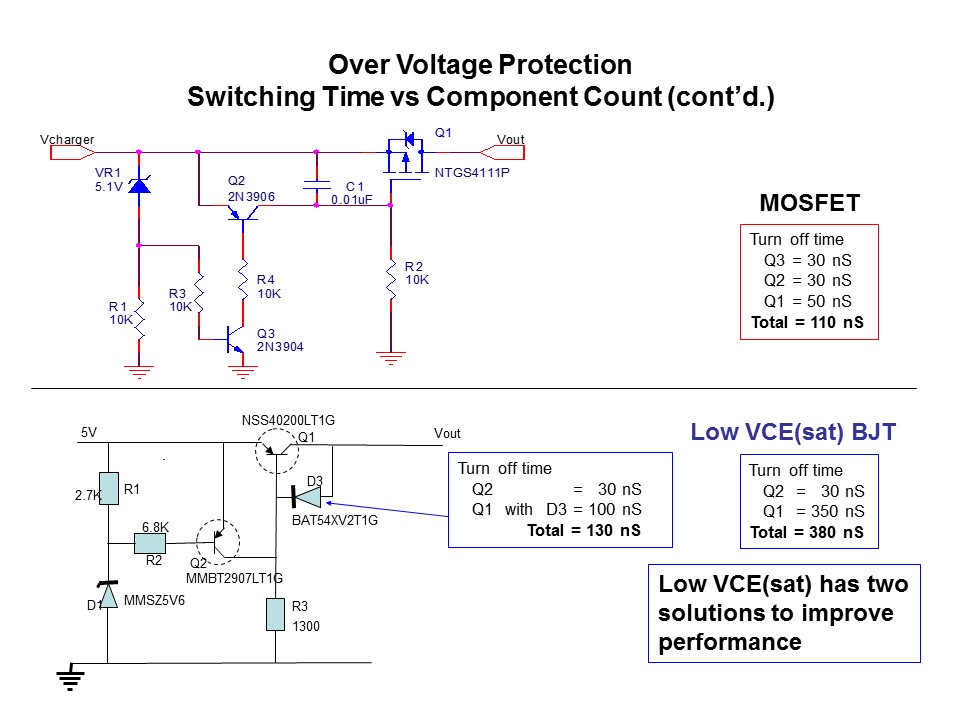

To improve the switching time of the BJT solution, a “Baker Clamp” can be used. A Schottky diode is placed across the collector – base junction of Q1. This improves the switching time to about 130nS for this circuit, almost the same as the MOSFET solution.
