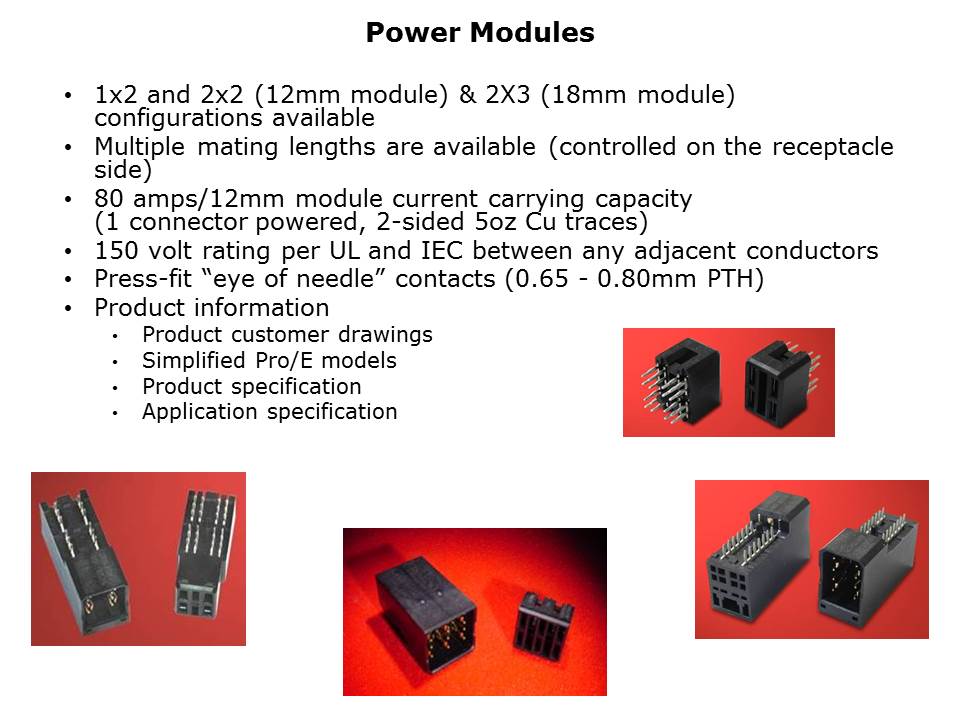

Slide 15
Slide 16
Slide 17
Slide 18
Slide 19
Slide 20
Slide 21
Product List
The AirMax VS® Power connectors are available in 1x2, 2x2 and 2x3 configurations. Multiple mating lengths are available on the Receptacle side for first make/last break. The power connectors are rated at 80 amps and 150 volts between adjacent conductors per UL and IEC guidelines. The connectors are compliant with the UL finger probe test. Product drawings and specifications are available on line.
PTM Published on: 2011-10-12
