Product List

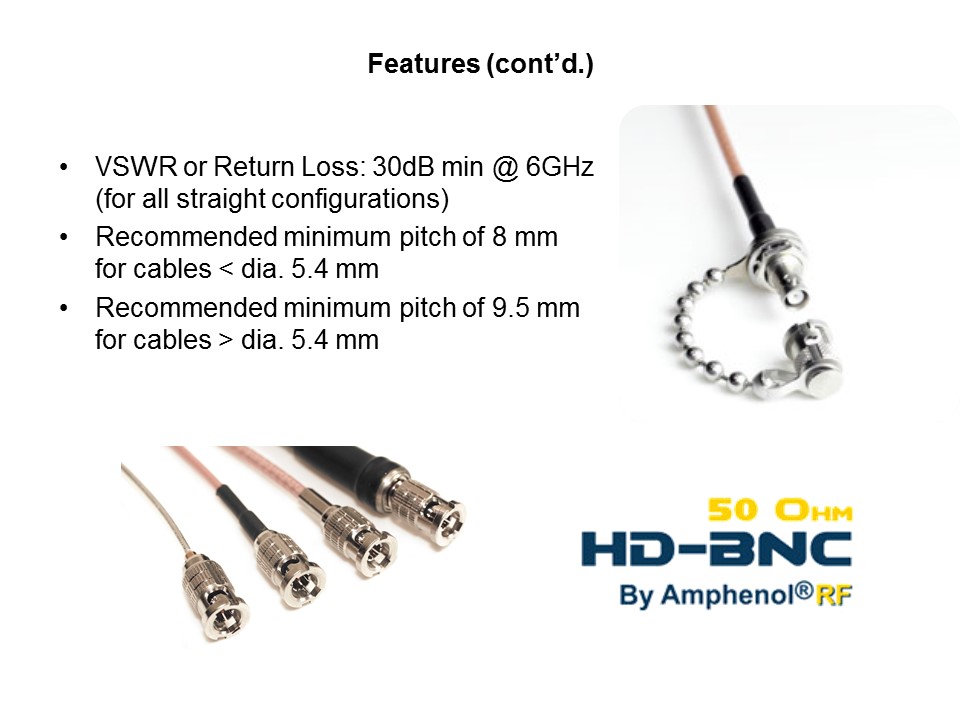

For all straight configurations using the HD-BNC™ 50 Ohm, a VSWR or Return Loss of 30dB min @ 6 GHz can be expected. Amphenol recommends for cable diameters less than 5.4 mm, a pitch of 8 mm; and for cable diameters larger than 5.4 mm, a pitch of 9.5 mm.
