Product List

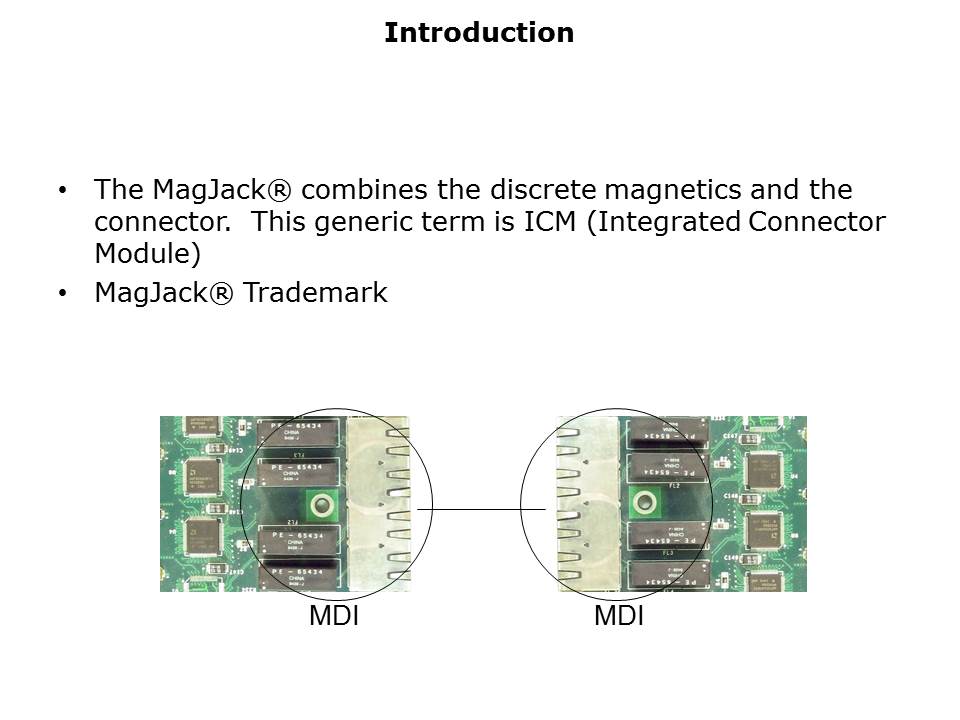

As shown in this slide, a Base-T implementation for Ethernet requires specific magnetics for the system to communicate properly. In addition to the magnetics, an RJ-45 connector is required to allow ease of connectivity to the twisted pair Ethernet cable. The Bel Stewart MagJack combines the magnetics and RJ-45 connector into a single component.
