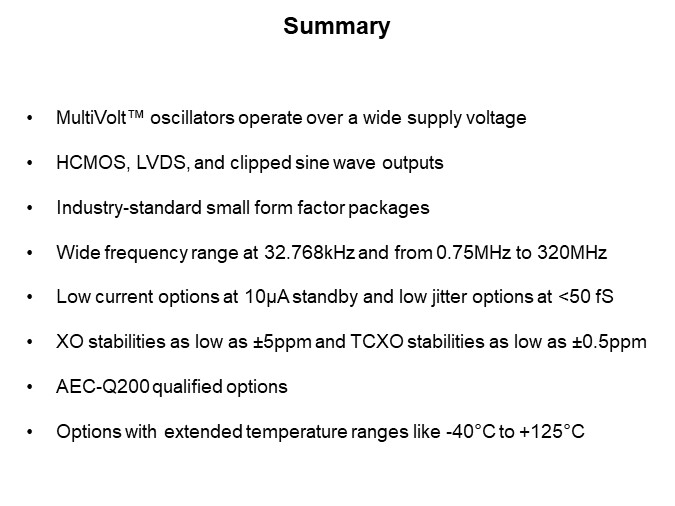

Image of ECS Inc MultiVolt Oscillators Overview - Summary

In summary, ECS Inc.’s full line of MultiVolt™ quartz-based oscillators offer excellent frequency tolerance and temperature stability to meet even the toughest requirements, while maintaining low jitter, low power, and phase noise performance. They are available as 32.768kHz oscillators, clock oscillators, and temperature compensated clock oscillators. They are available in industry standard packages and pin outs. If the customer needs a simple reference clock, or is developing a mission critical system, ECS has the right MultiVolt oscillator to support the design.

PTM Published on: 2020-02-14
PTM Updated on: 2021-12-14
