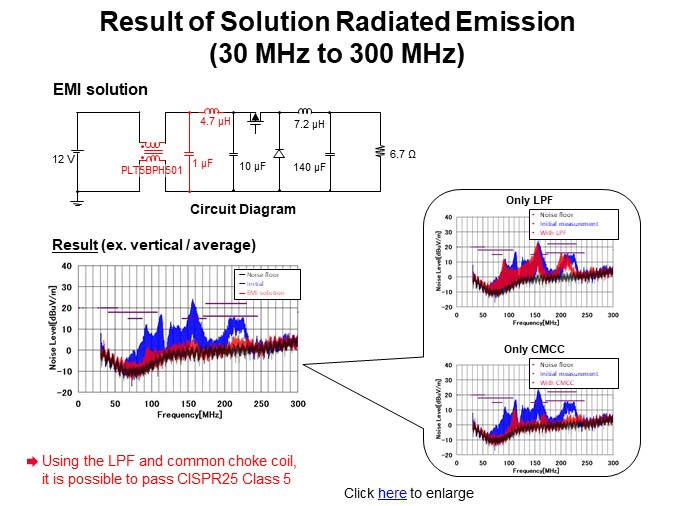

Detailed here are the radiated emission results measured from 30 to 300 MHz after applying both the low pass filter and common mode choke coil. As seen, the low pass filter cannot reduce all the noise-troubling frequencies, while the common mode choke coil provides an added amount of filtering, allowing this design to satisfy CISPR 25 Class 5.
