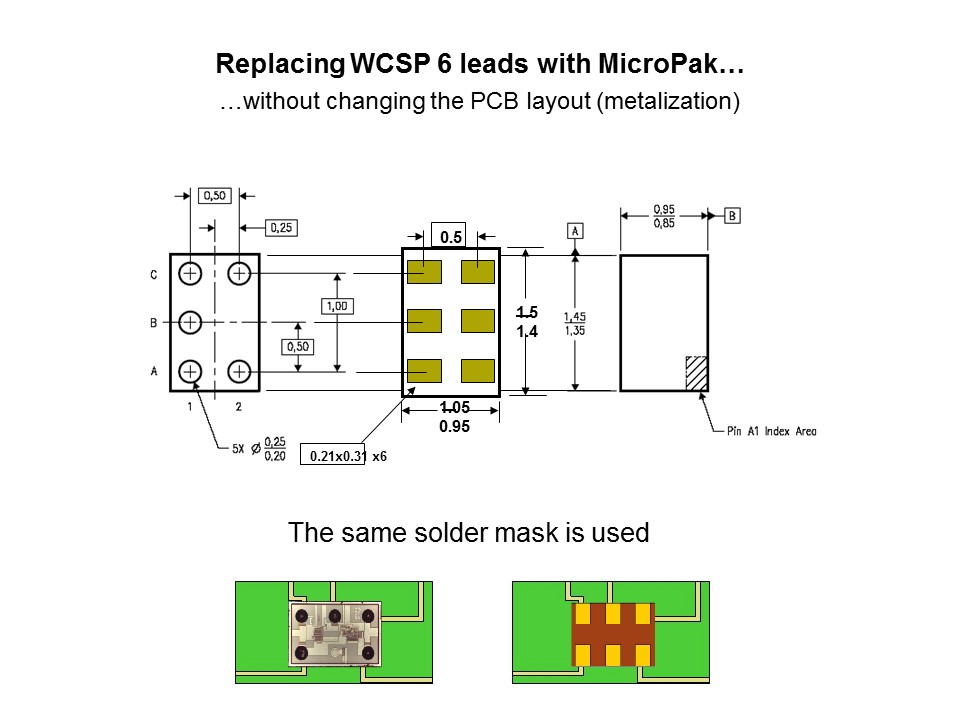

This study was conducted by comparing a 6-pin SOT886 MicroPak to a six ball WCSP package. Both parts have the same size and footprint. They are mounted on a PCB by using the same solder mask for both packages. The solder mask layout is the recommended footprint for the WCSP package. It is therefore not optimized for the MicroPak.
