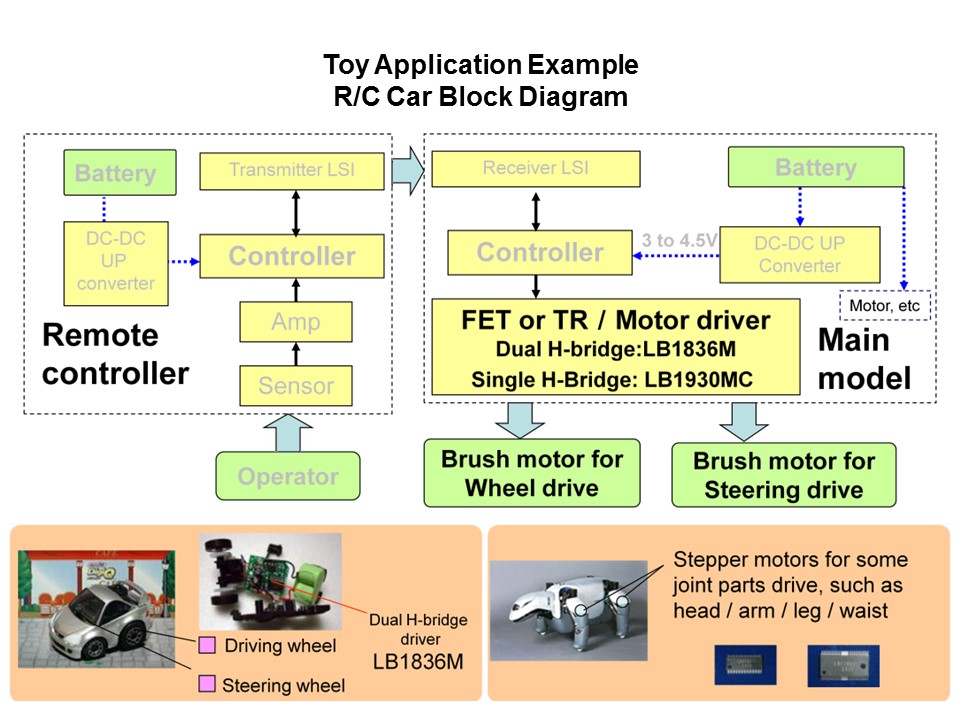

Shown on this slide is the block diagram of very small remote control car. A forward/reverse brush motor is used to move the steering left and right and to move the wheels forward and back. The LB1836M was used in this toy car because the available board area was so limited, there was only room for one motor control IC. This device can be used to control the motors in toy robot joints.
