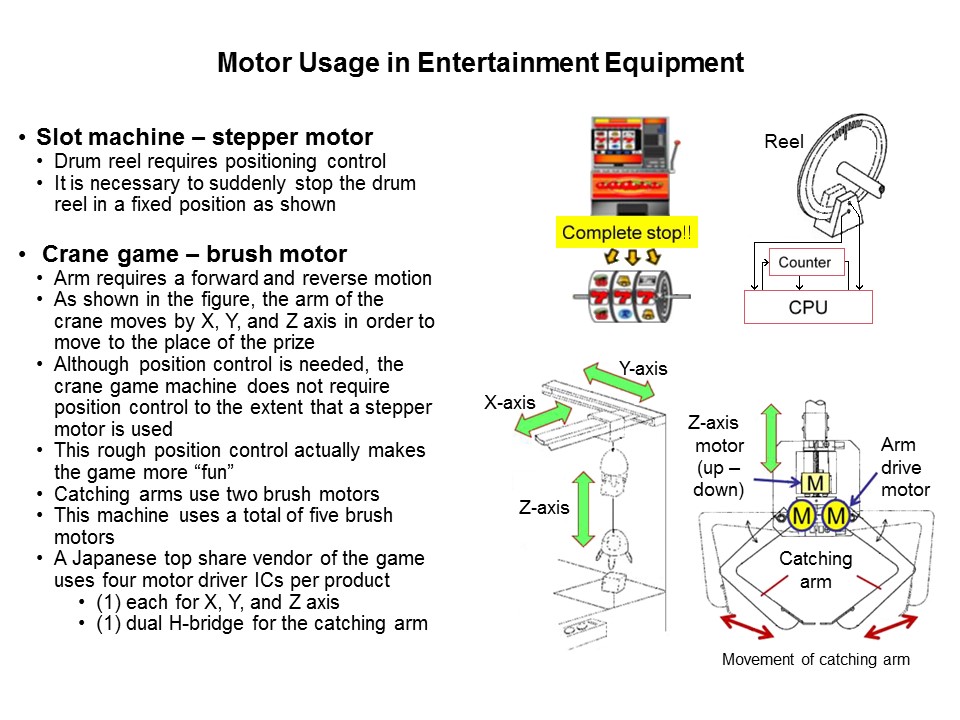

The motion of the drums in slot machines is not random mechanical motion. Because they must be precisely controlled and brought to a sudden stop, a stepper motor is used. In the example of playing the crane game, it is obvious that it is not precisely controlled. In the game shown on this slide there are five brush motors in use, one for each axis of motion and two in the claw as shown in the drawing on the right.
