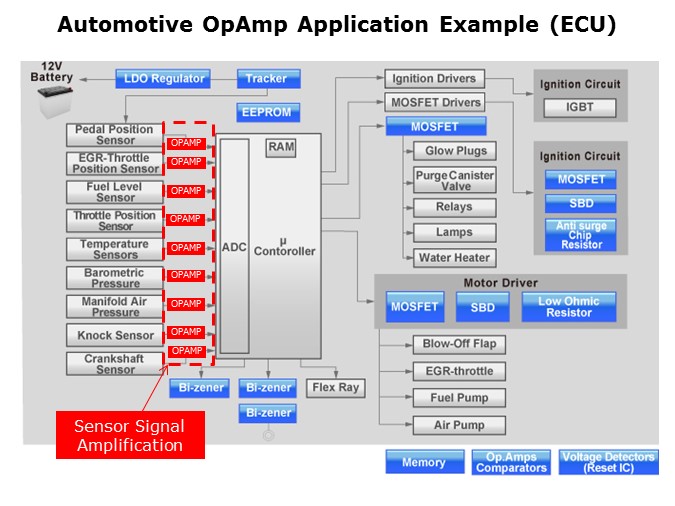

This is a diagram of an Engine Control Unit with the sensors on the left, and an MCU in the middle. As already mentioned on the 3rd slide, OpAmps are inserted between the sensors and system in order to amplify the weak sensor output signals.
