Product List

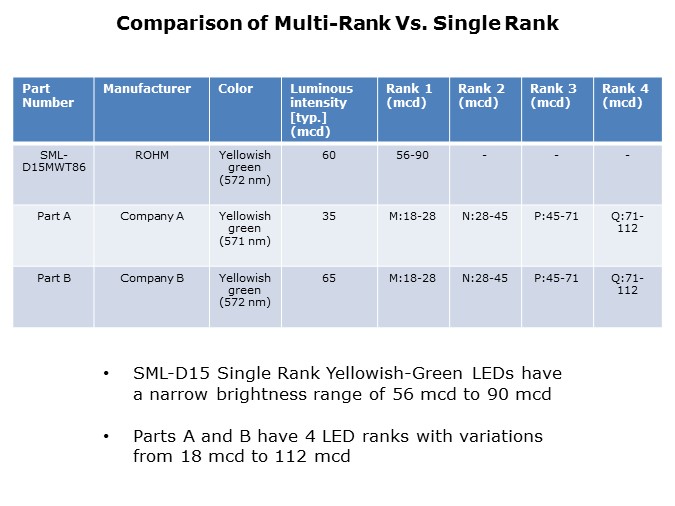

The table on this slide shows a comparison of yellowish-green Single Rank and Multi-rank LEDs. The SML-D15 LEDs are Single Rank with a brightness variation between 56 mcd and 90 mcd, while Companies A and B have four ranks with variations between 18 mcd to 112 mcd. ROHM’s Single Rank LED’s smaller brightness variations provides consistent brightness between products.
PTM Published on: 2016-02-06
PTM Updated on: 2018-10-01
