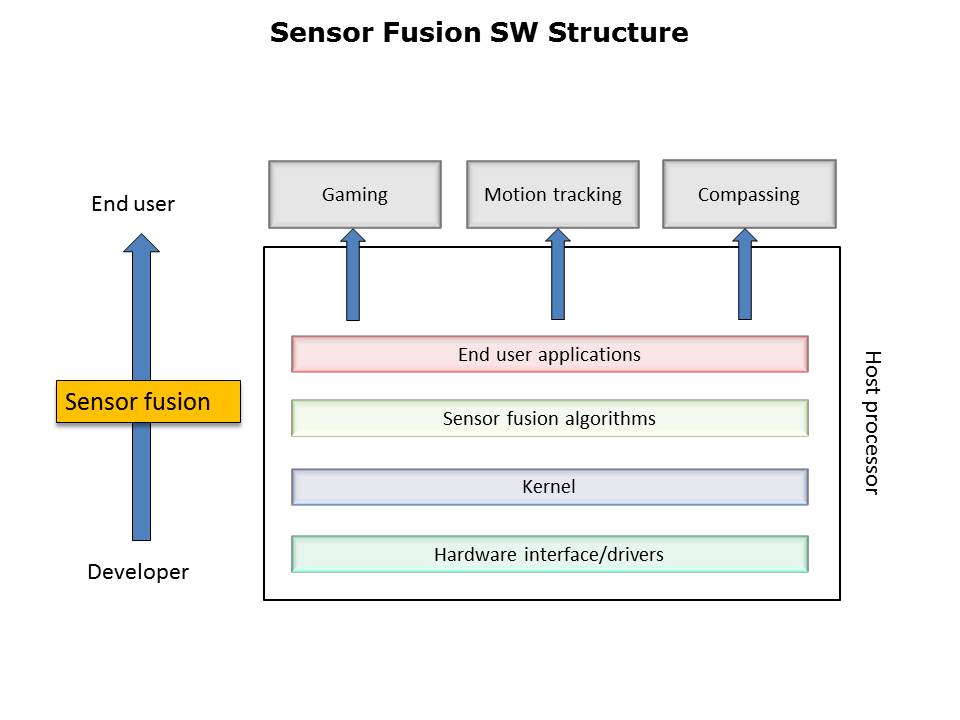

The image on this slide depicts the operation of Sensor Fusion. The Sensor Fusion is located with the hardware and drivers. The kernel of the system and the sensor fusion algorithm will be running to feed the end user application. The end user application will call the functions from the header files to get the compass or whatever tracking is desired.
