Understanding and Using Current Transformers Slide 9

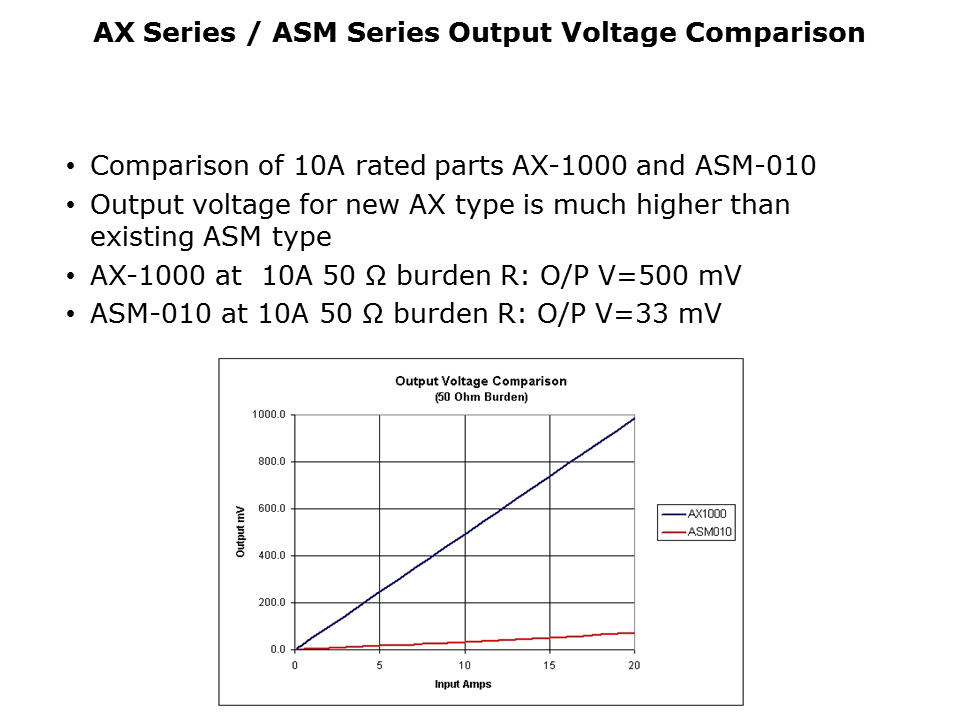

This graph illustrates the difference in output voltages between the ASM-010 and AX-1000, across a 50 Ω burden resistance.

PTM Published on: 2016-02-24
