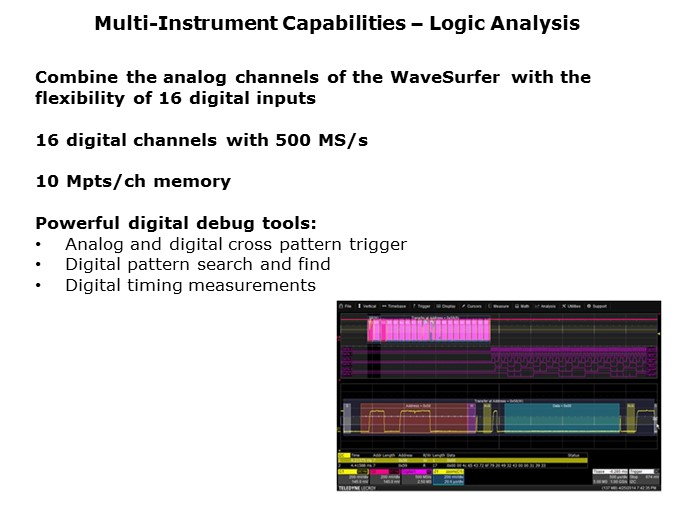

A third multi-instrument function integrated into WaveSurfer 3000 is logic analysis. Users may combine the oscilloscope’s analog channels with the flexibility of its sixteen 500 MS/s digital input channels. The analog and digital channels facilitate powerful digital debugging tools such as analog and digital cross pattern triggering, digital pattern search and find, and digital timing measurements.
