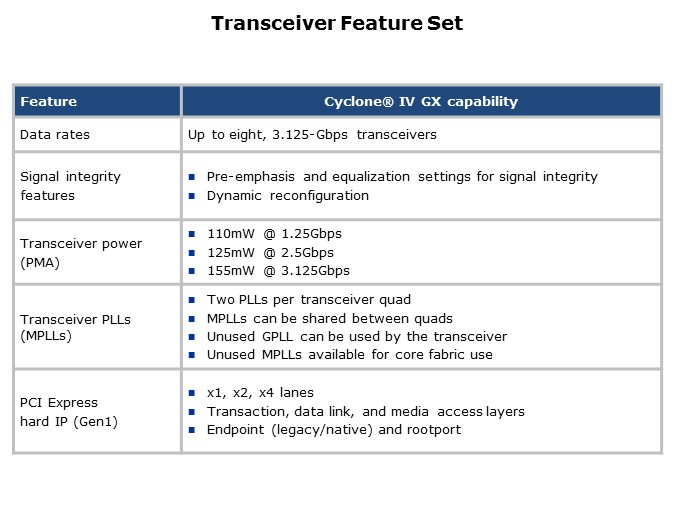

The table on this slide summarizes the Cyclone® IV GX transceiver feature set. To assist in debugging, Intel® offers pre-emphasis and equalization settings along with dynamic reconfiguration. Power consumption per transceiver is as low as 155mW at the fastest supported data rate, for a single channel. Due to resource sharing, such as PLLs and clock networks, the addition of channels decreases the per channel power consumption at a particular data rate.
